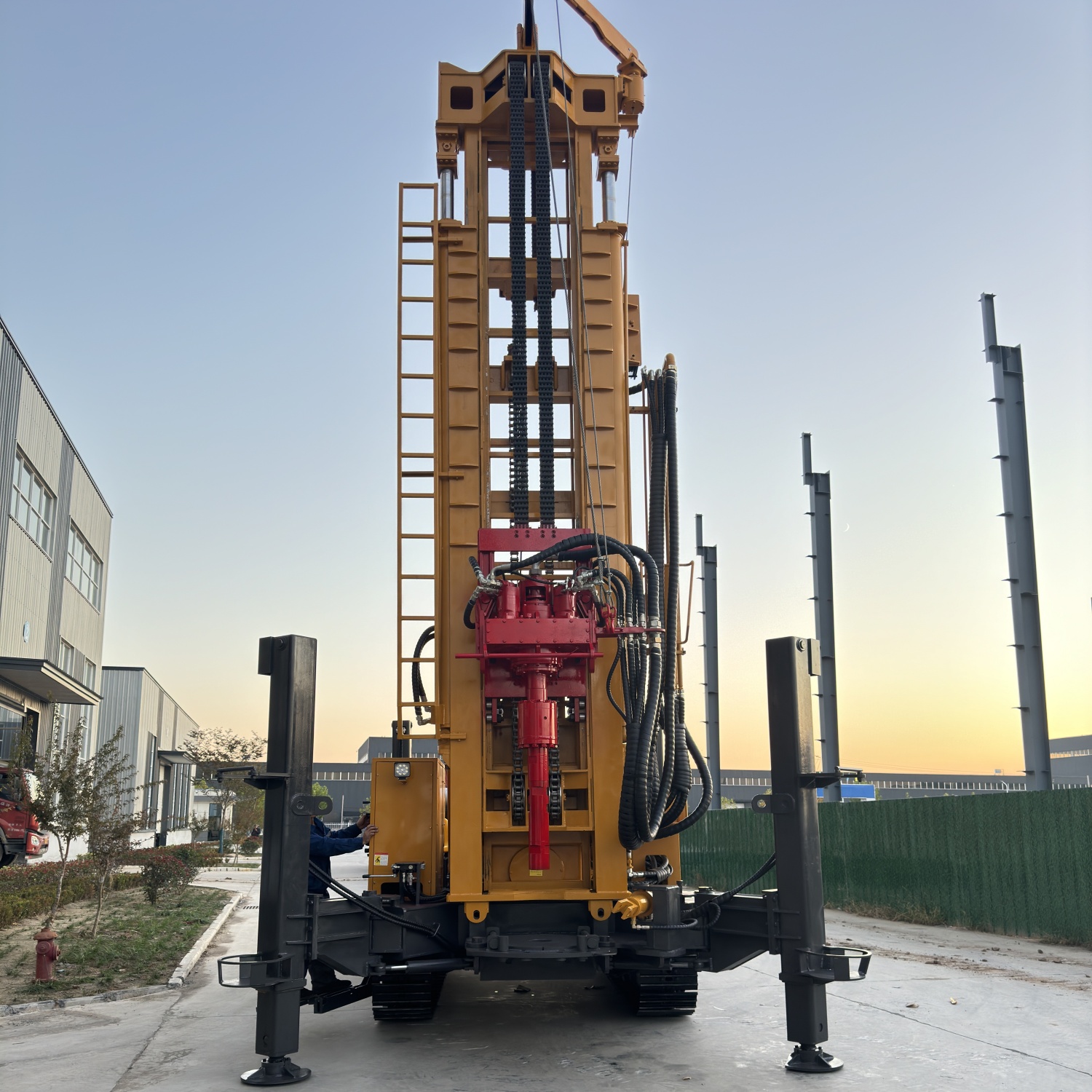

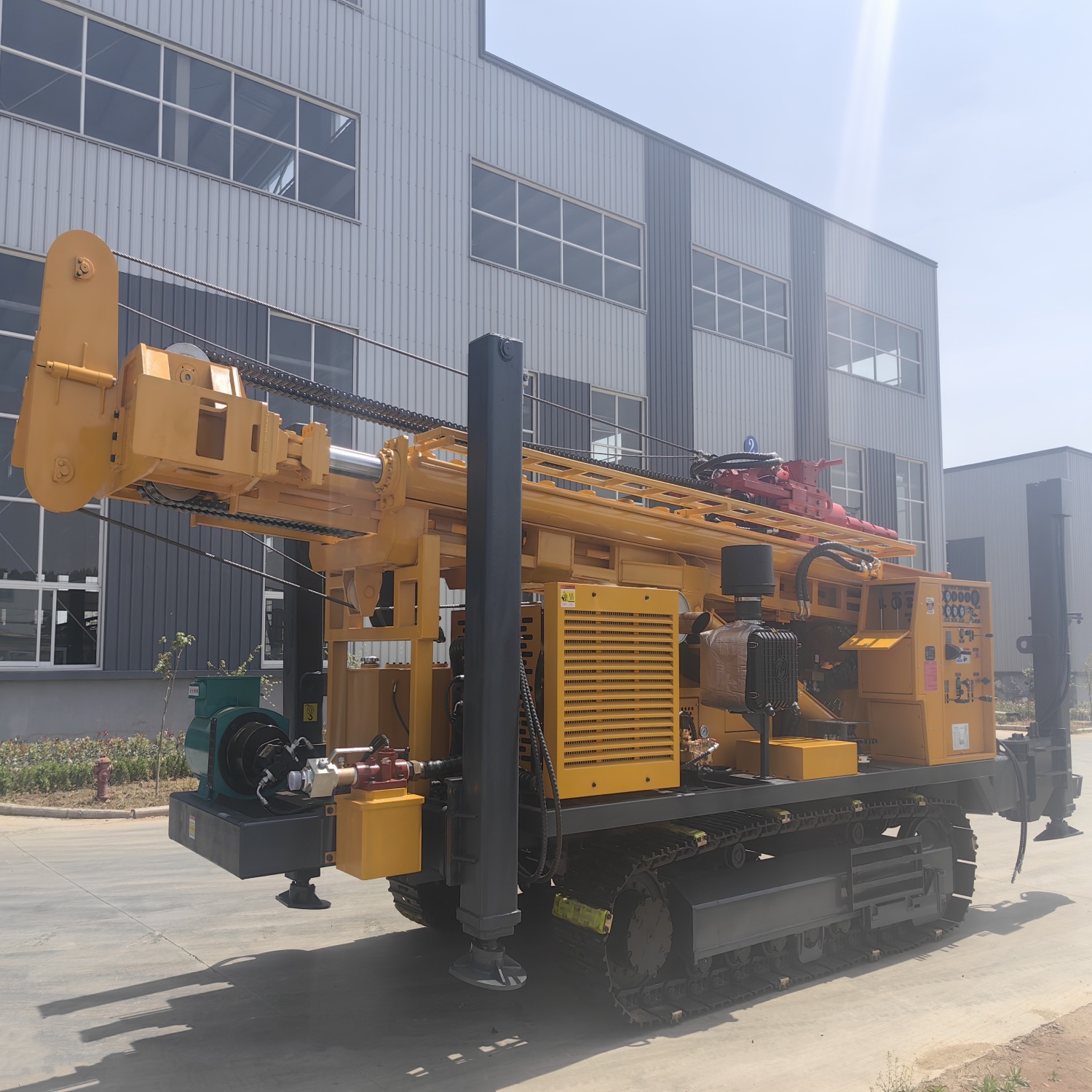

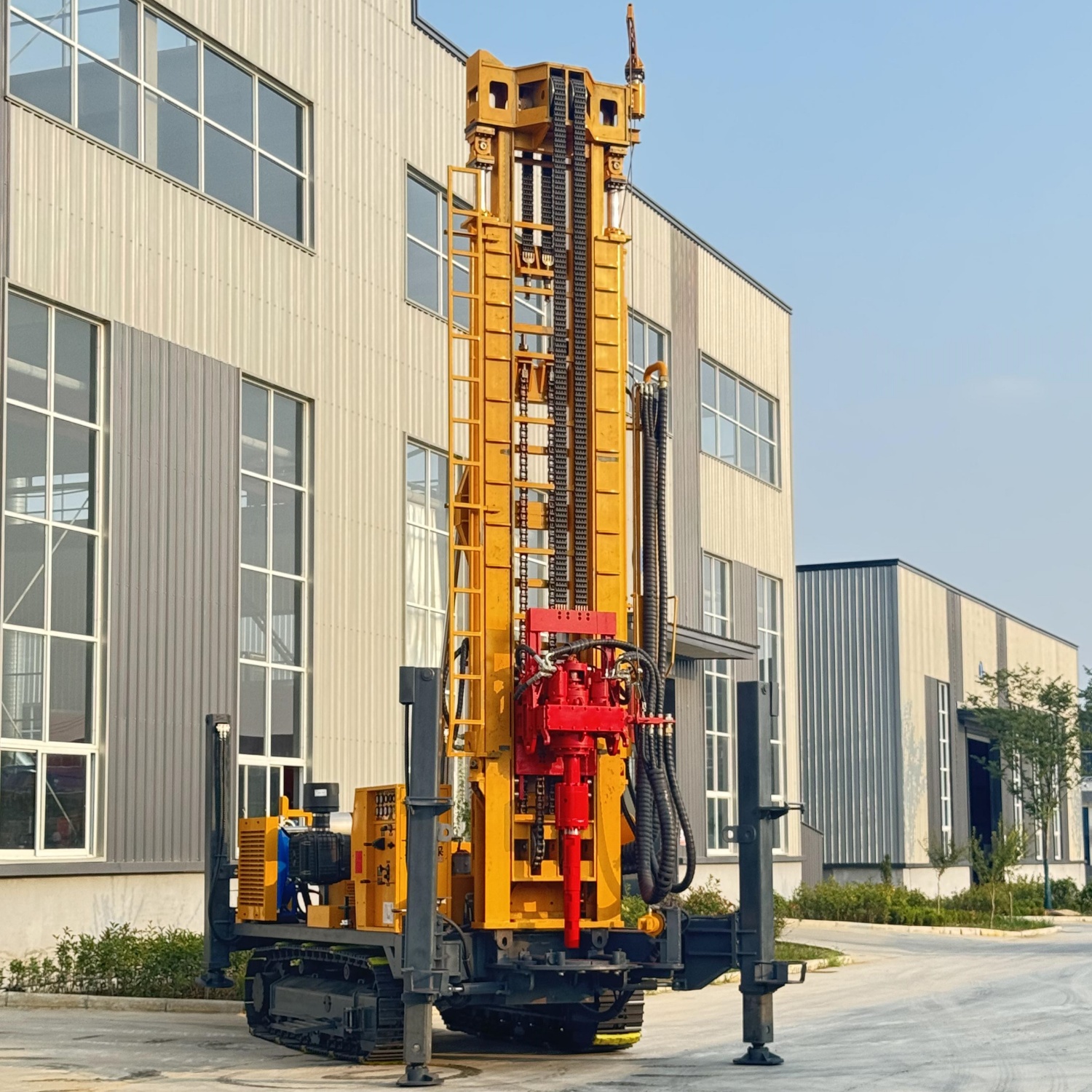

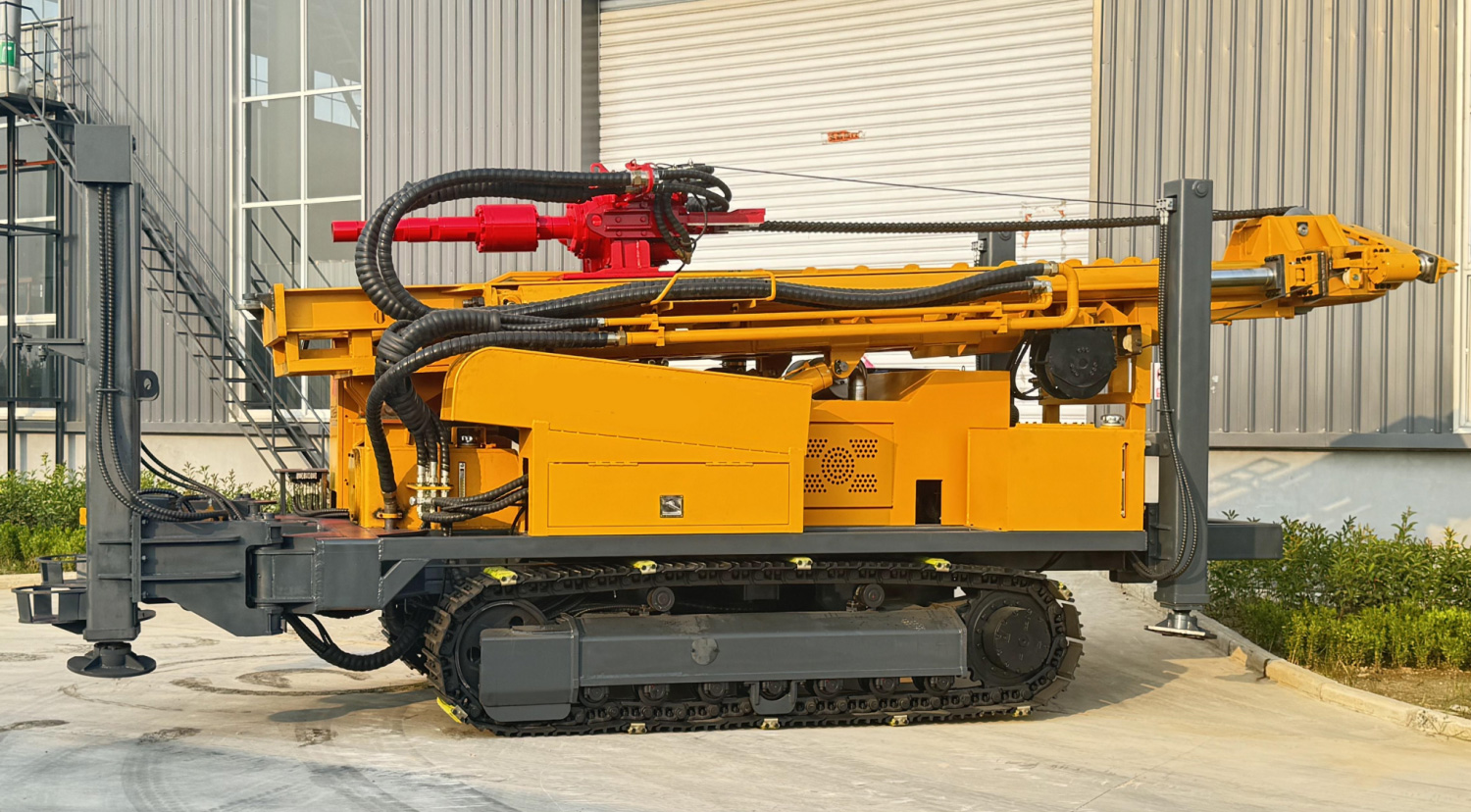

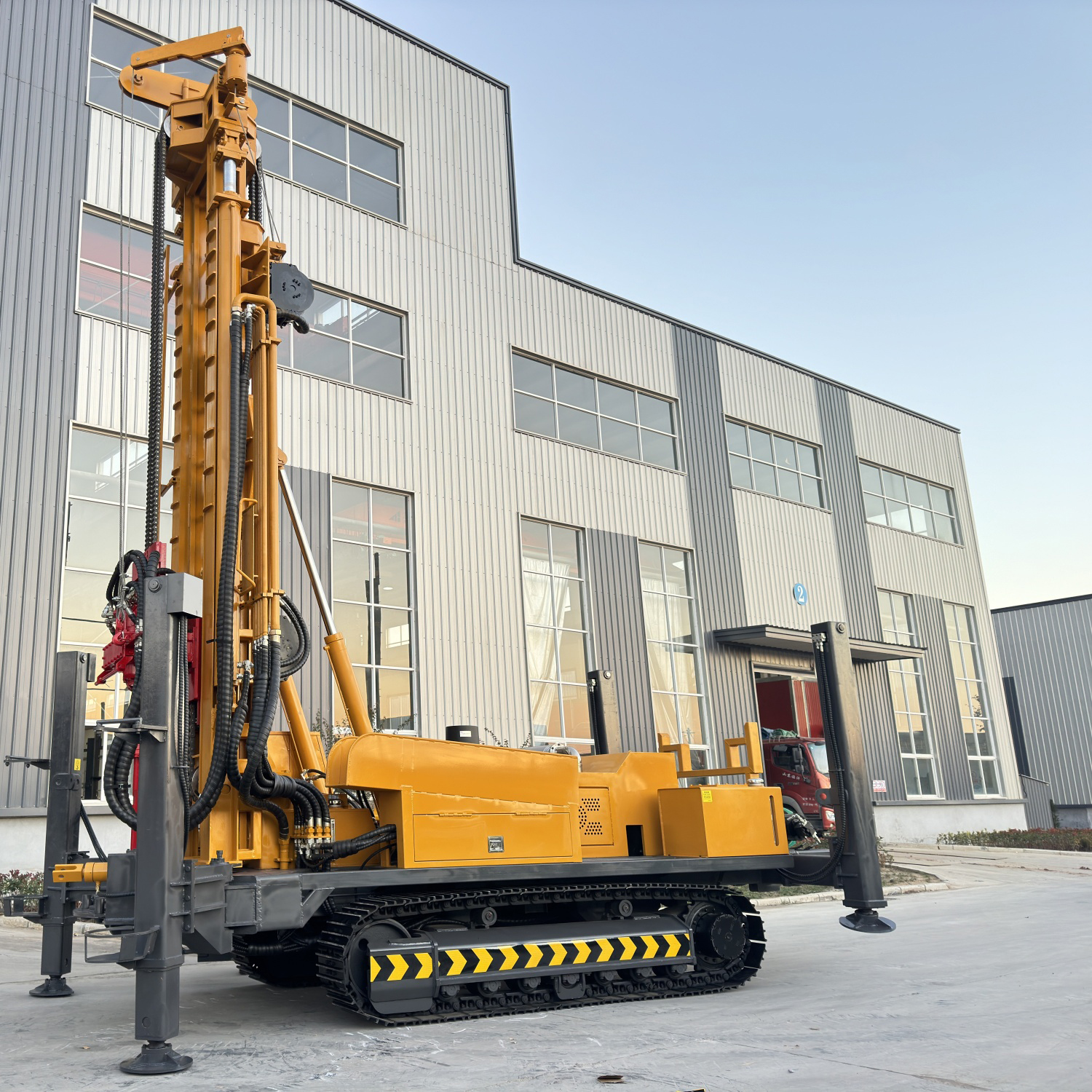

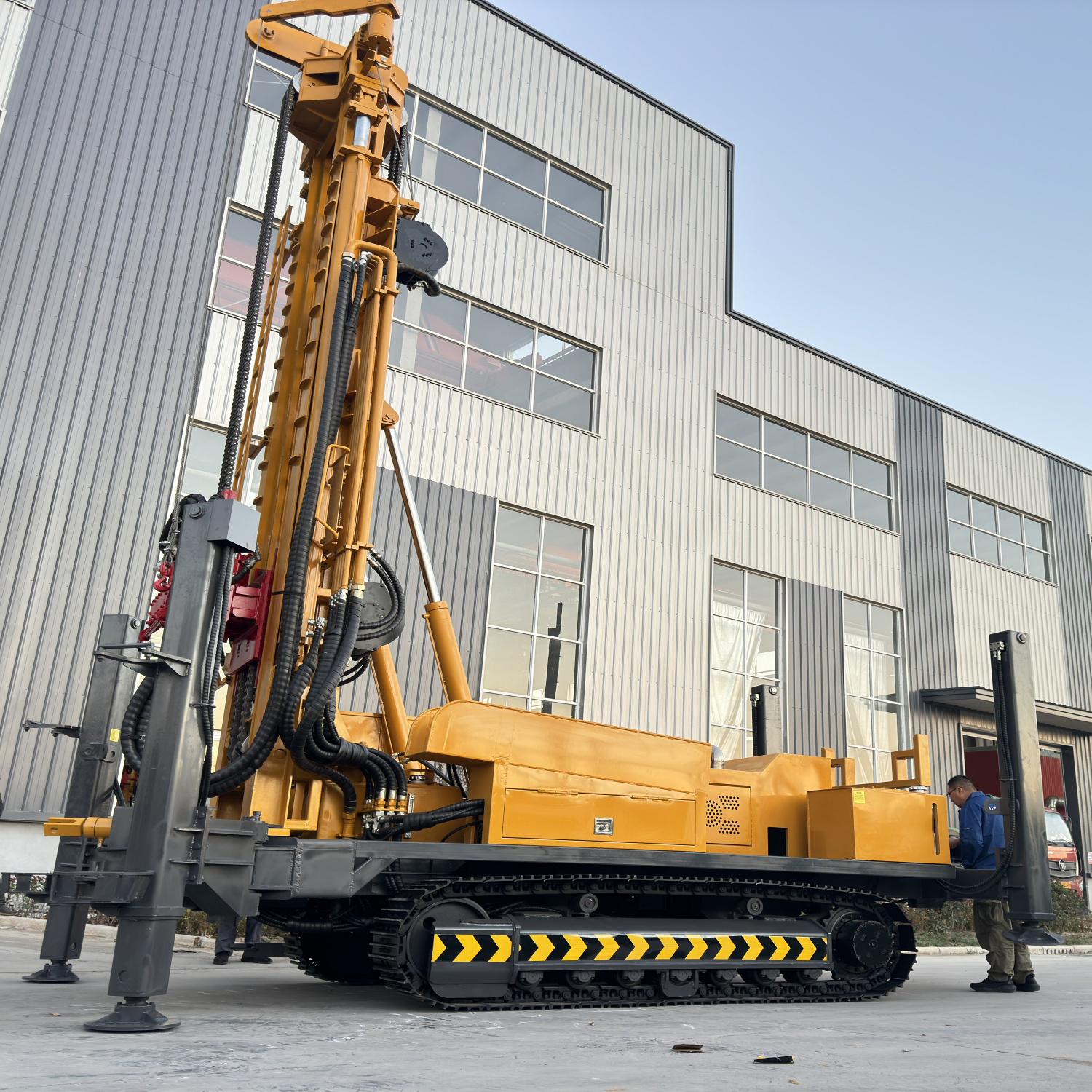

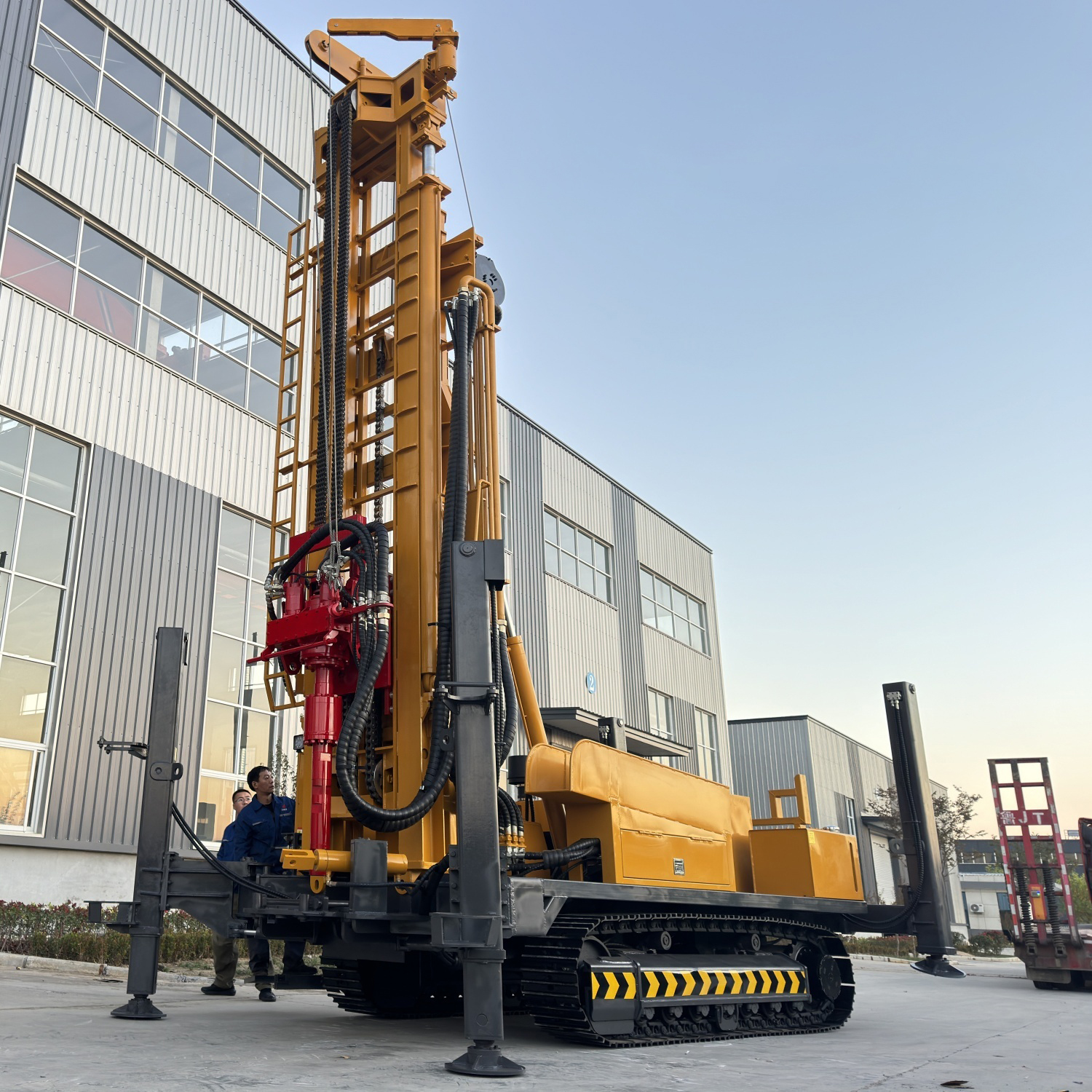

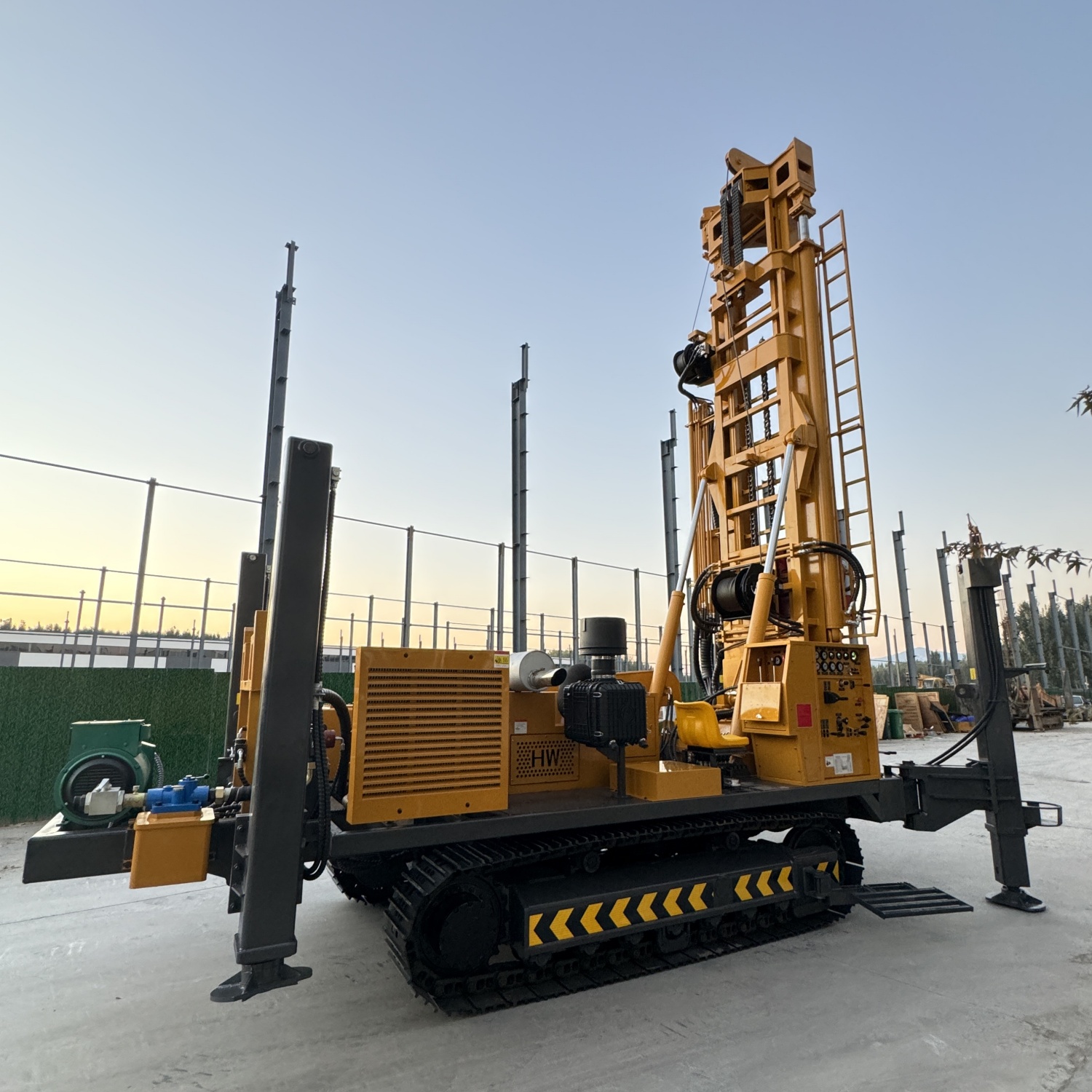

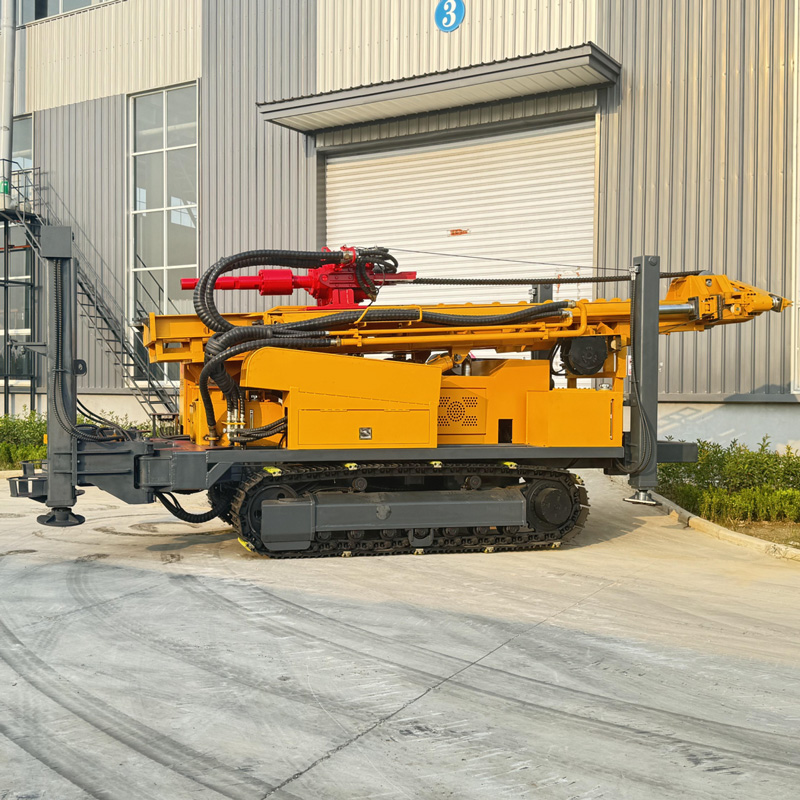

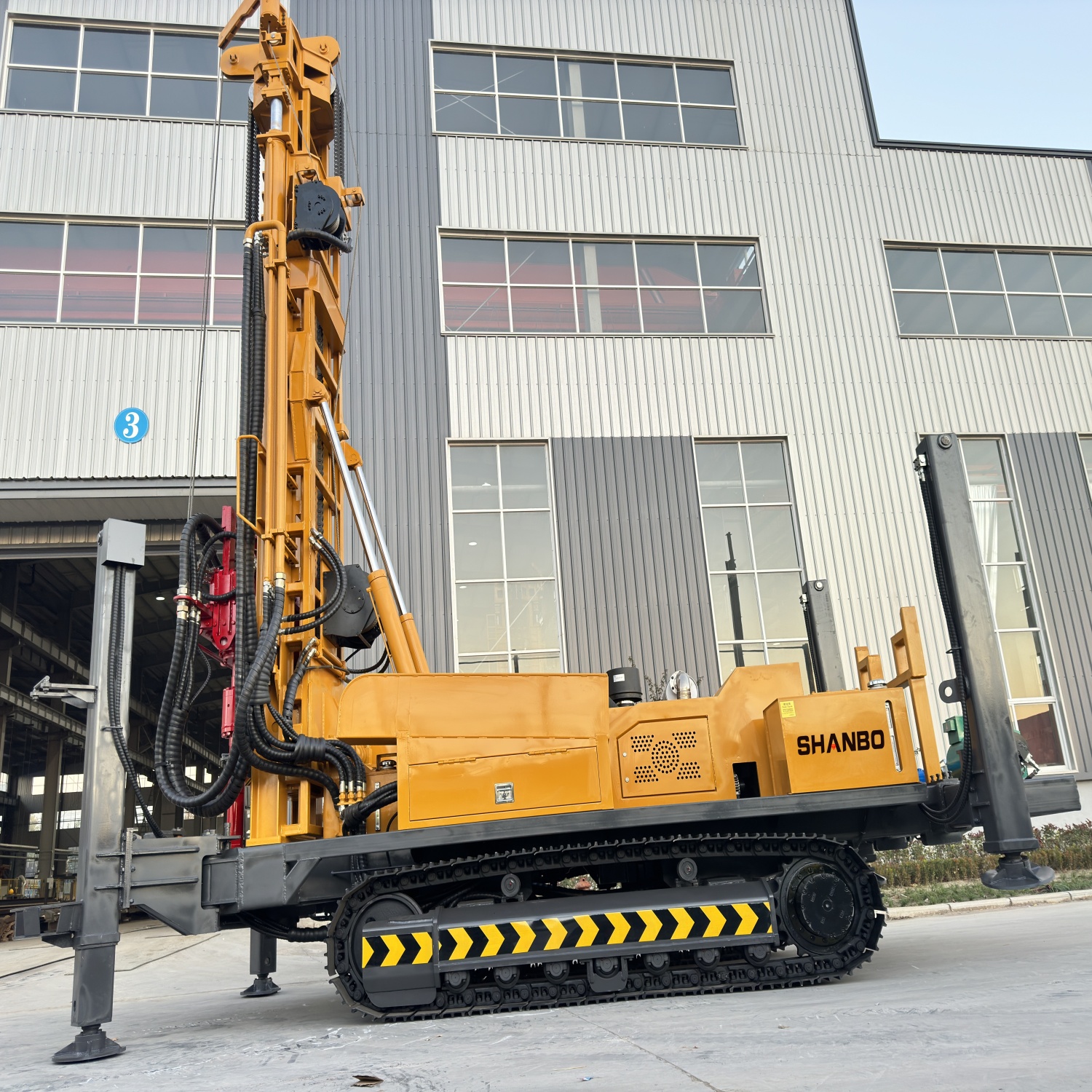

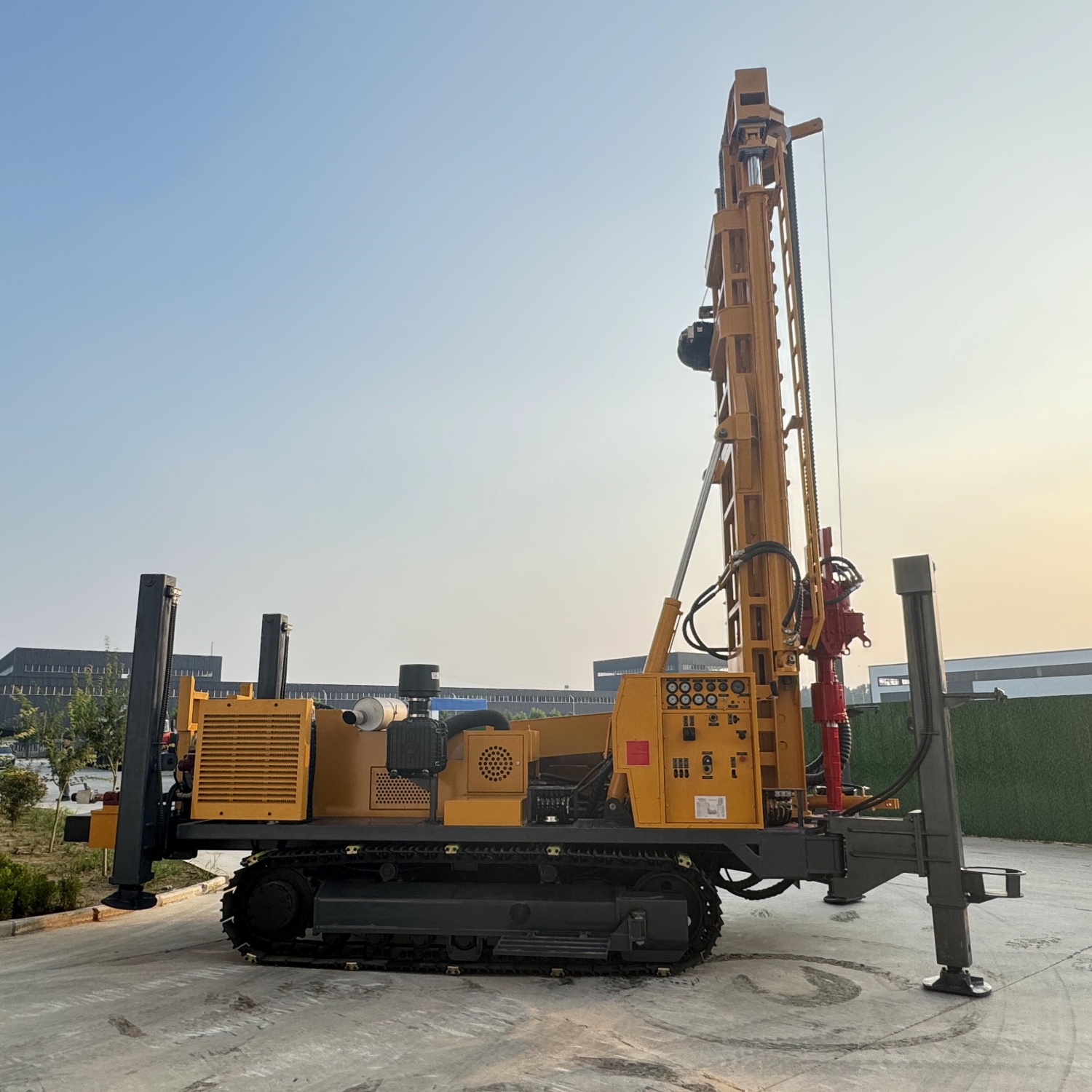

| SL1000/SL1000S Multi-functional Water Well Drilling Machine — Technical Parameters | |
|---|---|
| Performance Parameters | |
| Max drilling depth | 1000 m |
| Drilling diameter | 105–800 mm |
| Air pressure | 1.6–8 MPa |
| Air consumption | 16–96 m³/min |
| Drill pipe length | 7 m |
| Drill pipe diameter | 114 mm |
| Axial pressure | 8 T |
| Lifting force | 51 / 52 T |
| Fast lifting speed | 30 m/min |
| Feed speed | 61 m/min |
| Max rotary torque | 26000 / 13000 Nm |
| Max rotary speed | 70 / 140 r/min |
| Auxiliary System | |
| Big auxiliary winch lifting force | - |
| Small auxiliary winch lifting force | 2.5 T |
| Jacks stroke | 1.7 m |
| Efficiency & Mobility | |
| Drilling efficiency | 10–35 m/h |
| Moving speed | 5 Km/h |
| Uphill angle | 21° |
| Dimensions & Weight | |
| Weight of the rig | 17.8 T |
| Dimension | 7.3 × 2.25 × 2.75 m |
| Engine | |
| Engine | Cummins 194kw |
Always a pre-production sample before mass production;always final inspection is done before shipment;and our main unit has a one-year warranty, during which all damaged accessories can be replaced with new ones. We provide machine installation and operation videos.Our machines have a 12-month warranty, during which the core components are replaced at the factory price!
30% deposit, 70% before shipment.
1) Support customers to come to the factory for on-site inspection.
2) Support customers to designate third-party companies to inspect goods.
3) Support video inspection.
1) In the case of stock, we can deliver the machine within 7 days.
2) Under standard production, we can deliver the machine within 15-20 days.
3) In the case of customization, we can deliver the machine within 20-25 days.
We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
