⛏️ WR600RC-CS3 600 m Crawler Reverse Circulation Drill Rig

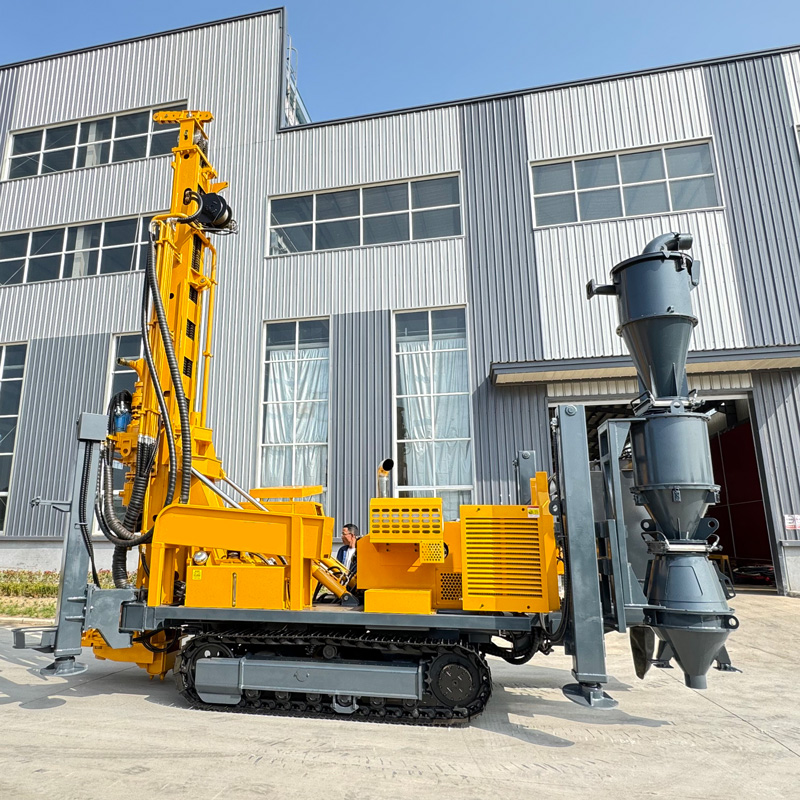

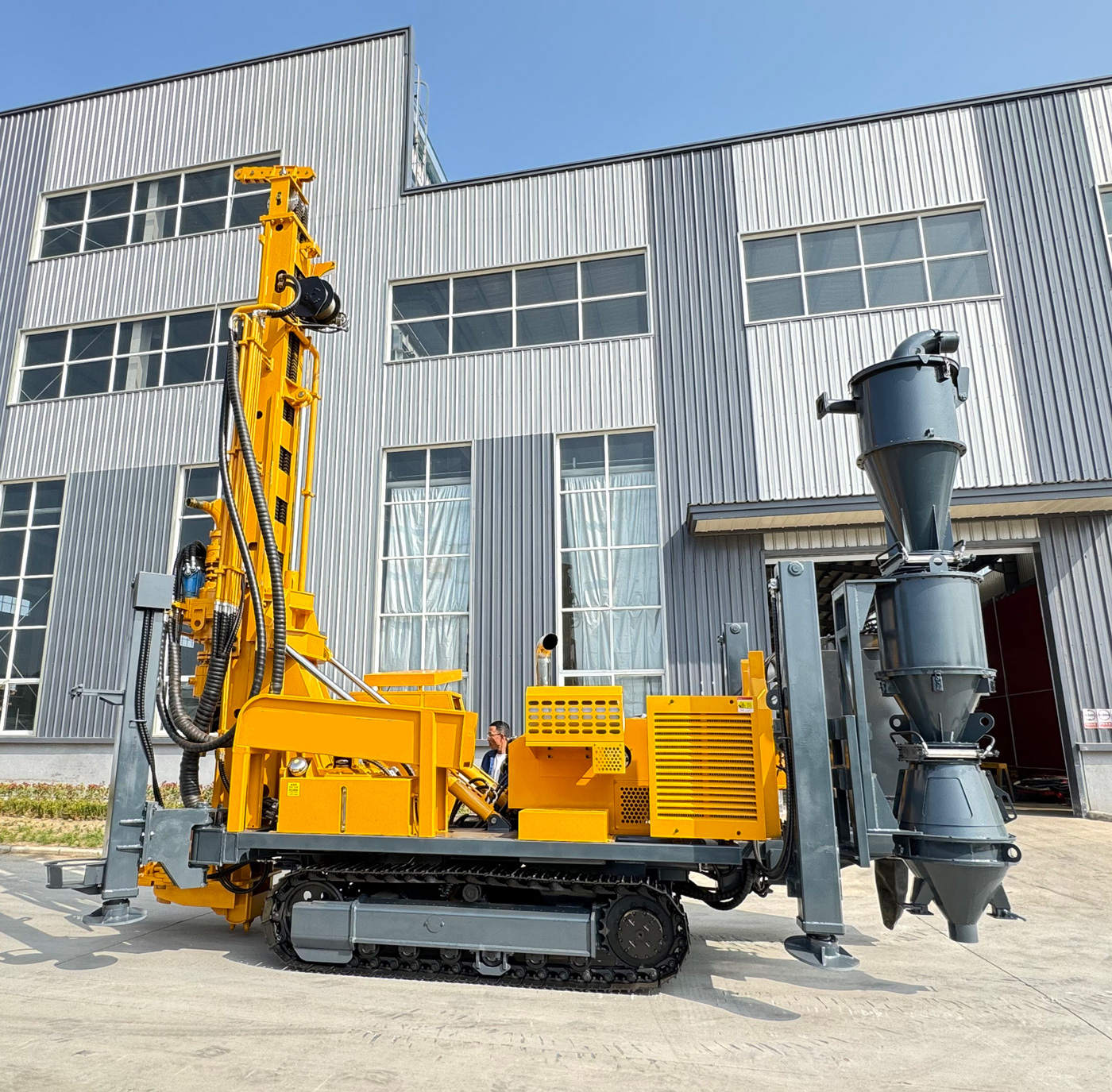

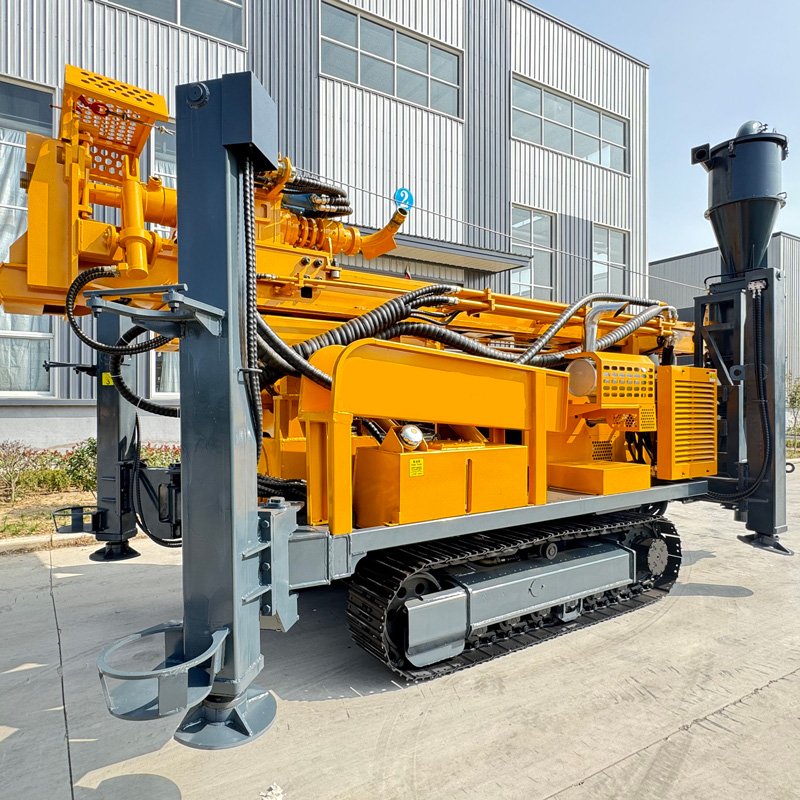

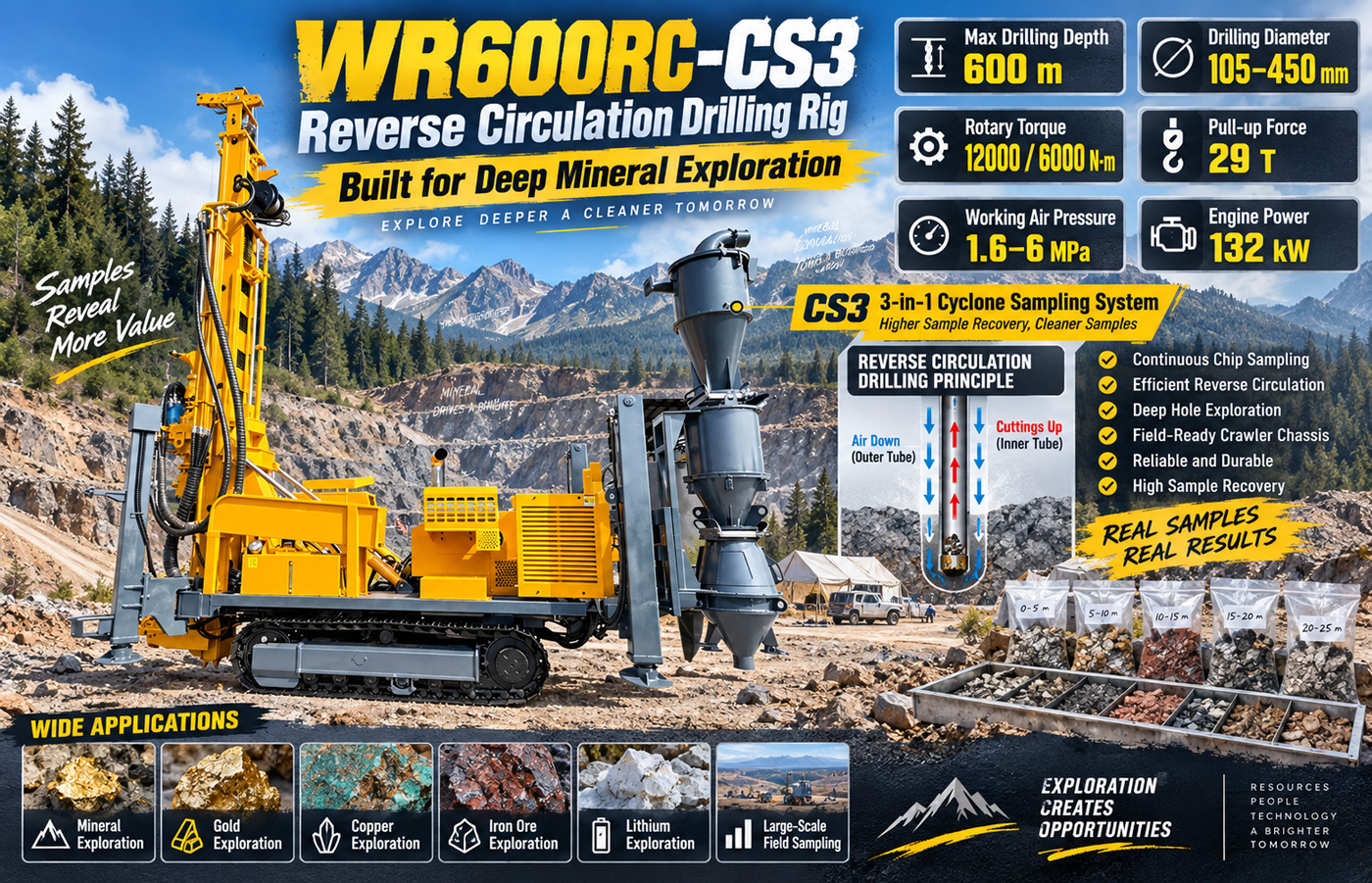

The WR600RC-CS3 is a 600 m class crawler reverse circulation drill rig designed for mid-deep mineral exploration and large-volume on-site sampling. Based on the WR600RC deep-hole platform, it adds a three-in-one cyclone sampling system that directly links cuttings return, cyclone separation, sample splitting, and sample bagging, making it more suitable for exploration projects requiring continuous drilling, continuous sample return, and extensive sample numbering management.

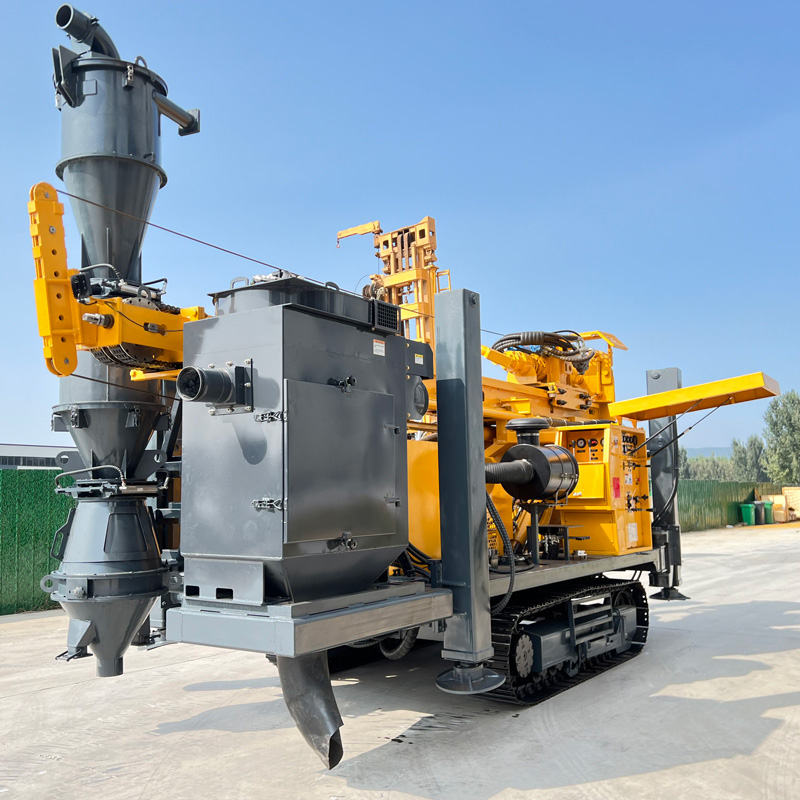

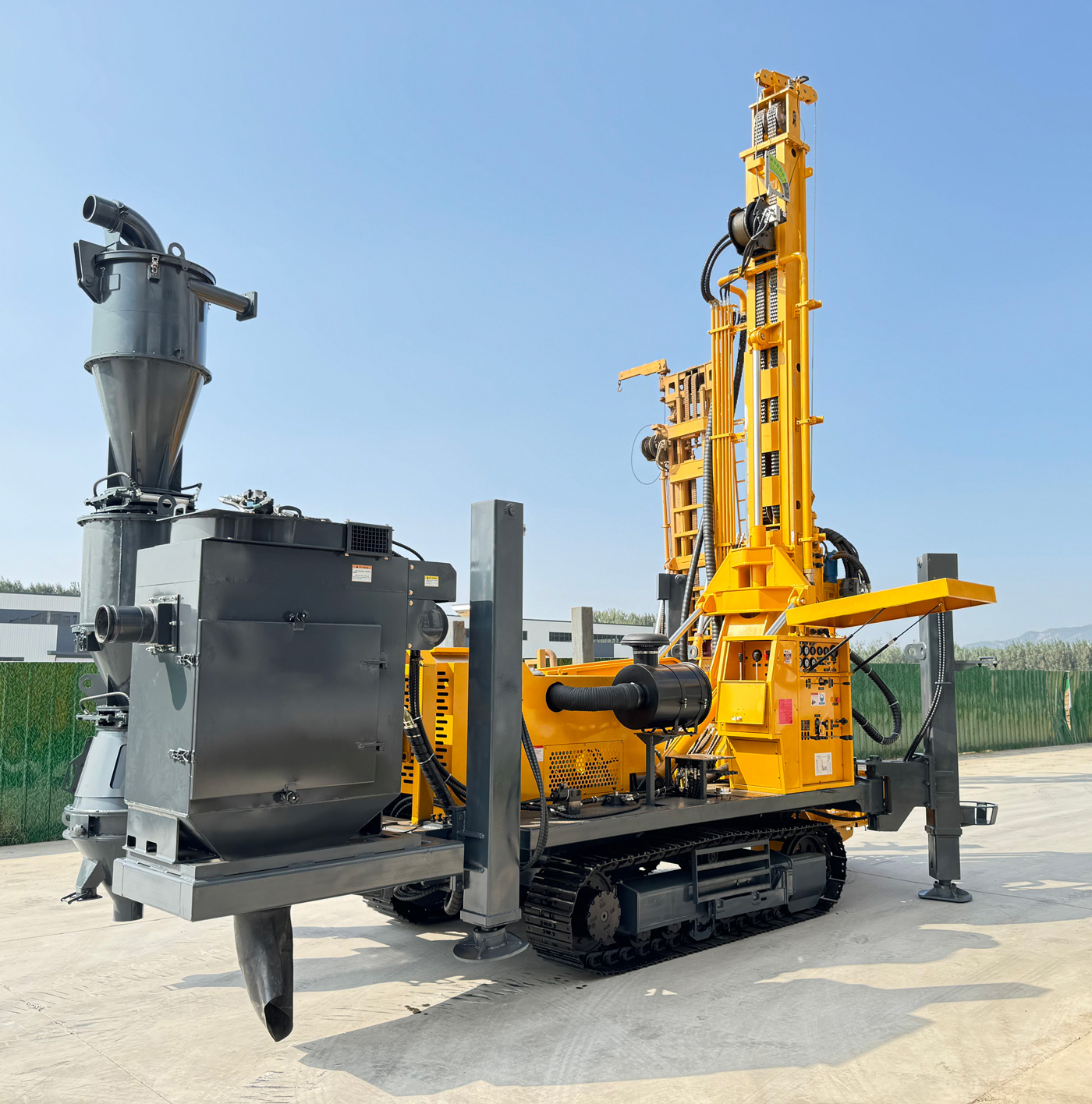

🌀 The CS3 three-in-one system centralizes the sampling process at the drill site

The three-in-one sampling system integrates cyclone separation, representative sample splitting, and sample collection into a continuous process. After cuttings return to the surface through the inner tube of dual-wall drill pipes, they directly enter the cyclone system for gas-solid separation, then proceed to splitting and bagging. This reduces manual sample handling and secondary transfer, making it particularly suitable for mineral exploration projects with large daily sampling volumes.

🔄 600 m class reverse circulation sample return emphasizes deep-hole stability

As hole depth increases, the cuttings return distance becomes longer, and air volume loss, drill pipe sealing, and in-hole air leakage have a more significant impact on sample recovery. The WR600RC-CS3 recommends a working air pressure of 1.6–6 MPa and air consumption of 16–75 m³/min. The purpose is not only to drive the RC hammer but also to ensure that cuttings can continuously return through the inner tube to the cyclone sampling system.

🧪 Suitable for continuous depth-based sampling

RC drilling obtains cuttings samples, not complete cores. On site, fixed sampling intervals can be set according to project requirements, such as collecting one bag of sample every 1 m or every 2 m, while simultaneously recording the drill hole number, start and end depths, and sample number. The three-in-one sampling system allows drilling, sample return, splitting, and bagging to be more closely coordinated.

🥇 Deep gold anomaly verification

In gold exploration, shallow geological and geochemical anomalies often require deeper drilling to confirm whether they extend downward. The 600 m drilling depth of the WR600RC-CS3 can cover deeper structural zones, alteration zones, and mineralized layers, making it suitable for quickly determining the continuity of deep mineralization, peripheral targets, and potential ore body boundaries.

🟠 Large-scale deep screening for copper, iron, and lithium mines

Copper, iron, lithium, and polymetallic projects often require multiple verification holes arranged over a large area. The RC method can quickly obtain a large number of cuttings samples, and assay results can be used to screen key deep targets. For key anomalies, core drilling rigs can then be used for continuous coring, forming a combined exploration plan of "RC rapid screening + core fine verification."

📍 Depth marking and sample tracking determine later data quality

The three-in-one system improves sampling process efficiency, but sample management must still be strict. Each sample bag should be labeled with the drill hole number, sample number, start and end depths, date, and shift, and on-site records must be consistent with the sample bags. If the project implements a QA/QC system, duplicate samples, standard samples, and blank samples should also be set up as required.

🧹 Cyclones and splitters must be cleaned regularly

If residual cuttings between different mineralized sections are not cleaned in time, the risk of sample contamination increases. Each time drilling stops, the hole is changed, or a new key sampling interval is entered, the interior of the cyclone, splitter, and sample return hose should be checked for residue to prevent samples from the previous depth from mixing into the next sampling section.

📏 600 m drilling depth and 105–450 mm hole diameter

Maximum drilling depth is 600 m, and hole diameter is 105–450 mm. This range not only meets most mid-deep mineral exploration holes but can also handle some large-diameter water wells and mine dewatering projects. Actual drilling depth will vary with hole diameter, dual-wall drill pipe weight, air compressor capacity, and formation conditions.

📐 45° / 90° working angles suit different ore body attitudes

The equipment supports 45° and 90° working angles. For inclined veins, fault-controlled ore bodies, and specific targets, 45° inclined holes can be used to improve the effectiveness of intersecting the target body; for vertical overburden surveys and general deep water wells, 90° construction can be used. The hole angle should be based on the geological design.

💪 29 T lifting force meets 600 m class dual-wall drill pipe tripping

Dual-wall RC drill pipes have a more complex structure than ordinary single-wall drill pipes, and the weight and friction of the entire string are higher at deep depths. The 29 T lifting force can be used for normal tripping, RC hammer recovery, and some casing operations. If stuck pipes or abnormal pulling resistance occur, they should be handled by first judging through hole cleaning and in-hole conditions.

🔄 12000 / 6000 N·m dual-condition rotary system

Maximum rotary torque is 12000 / 6000 N·m, corresponding to rotary speeds of 75 / 150 r/min. Low speed and high torque are more suitable for large-diameter, high-resistance, and hard rock sections; higher speeds are suitable for stable formations with lighter loads. On-site adjustments should be made dynamically based on sample return conditions and drilling tool loads.

💨 Air compressor displacement determines whether deep-hole sample return is continuous

In 600 m RC holes, the air compressor must not only provide impact energy but also transport cuttings from the hole bottom to the surface. The recommended air consumption reaches 16–75 m³/min. If air volume is insufficient, common manifestations include reduced sample return, delayed sample return, and cuttings accumulation at the hole bottom. Therefore, air compressor selection should fully consider hole depth, hole diameter, and altitude.

💎 RC hammers or DTH hammers can be used directly in hard rock

Granite, limestone, sandstone, and other relatively intact rock formations can use RC hammers or DTH down-the-hole hammers. RC hammers are more suitable for exploration holes requiring continuous samples; ordinary DTH hammers are more suitable for water wells and general boreholes where sample quality is not emphasized. The same machine can switch drilling tools according to project objectives.

🌧️ Mud rotary drilling can be used in loose overburden

Soil layers, clay, sand layers, and gravel layers are prone to hole collapse and may not be suitable for direct high-pressure RC drilling. The equipment supports mud rotary drilling, which can first use mud and casing to stabilize the upper hole section, then switch to RC or DTH processes after entering rock formations, improving hole stability.

🧱 Fractured zones and air-leakage formations require attention to sample return distortion

Fault fracture zones and large fissures can cause air leakage, and cuttings may remain in the hole and then return in concentrated batches, causing poor correspondence between samples and actual depths. During construction, penetration should be reduced, hole cleaning maintained, and special records made in abnormal sections. If necessary, foam, casing, or other air leakage treatment methods should be used.

💧 Also suitable for deep water wells and mine water supply

The WR600RC-CS3 is not only suitable for mineral exploration but can also be used for agricultural, industrial, and mine deep water wells. Water well projects focus more on hole wall stability, aquifers, and well completion structures, and do not necessarily require the full sampling system. Changing drilling tools and construction procedures according to purpose can improve equipment utilization.

🌊 Mine dewatering and groundwater investigation

The 600 m class depth and relatively large hole diameter are also suitable for some mine dewatering and groundwater investigation projects. For such projects, well locations, well spacing, well diameter, and pump capacity should be determined based on hydrogeological conditions. The drill rig is only responsible for hole completion and cannot replace a complete dewatering design.

⚡ 132 kW Cummins power suitable for heavy-load continuous operation

The equipment uses a 132 kW Cummins engine to provide power for rotation, feed, crawler travel, and auxiliary hydraulic systems. RC sites usually also require large air compressors and sampling systems, so fuel supply, equipment layout, and maintenance space should be planned uniformly before starting work.

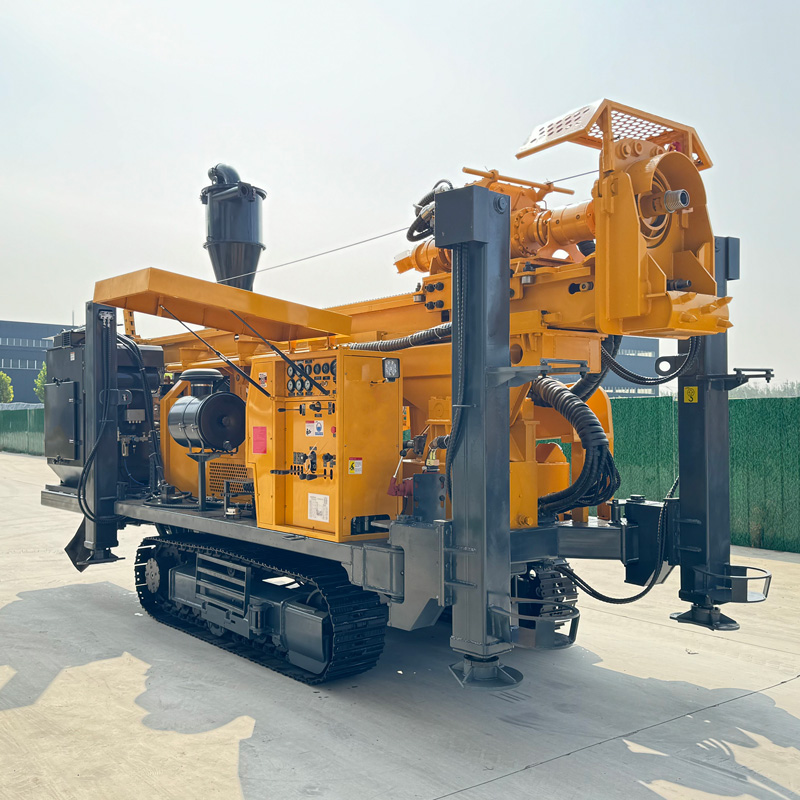

🚜 3.5 km/h crawler travel suitable for intra-mine relocation

Travel speed is approximately 3.5 km/h, and the maximum climbing angle is referenced at 21°. The crawler chassis is suitable for gravel roads and generally uneven platforms in mining areas. The overall weight is approximately 12.5 T, so road bearing capacity, slope, and soft ground conditions should be confirmed before relocation.

🦵 1.7 m outrigger stroke facilitates stability for inclined holes and high-torque drilling

The outrigger stroke is 1.7 m, which helps level the equipment and provide stable support. When performing 45° inclined holes or high-torque drilling, the force direction on the entire machine is more complex, and outrigger stress and platform stability directly affect hole direction control and operational safety.

🧵 2.5 T winch facilitates handling of RC hammers and sampling accessories

The winch lifting force is 2.5 T, which can be used for handling RC hammers, dual-wall drill pipes, sample return hoses, and other auxiliary tools. The sampling area is usually close to the drill rig and cyclone, so during lifting, suspended objects should be kept out of the working range of sampling personnel.

📦 12.5 T overall weight requires more complete drill pad planning

The overall weight is approximately 12.5 T, and the dimensions are approximately 7 × 2.1 × 2.9 m. In addition to the drill rig, the site also needs to accommodate air compressors, cyclone sampling systems, sample bags, and transport vehicles. Therefore, the drilling platform should reserve sufficient area to ensure smooth sample return pipelines and safe personnel access.

⚠️ Key points for daily maintenance of the sampling system

Before starting work each day, check the dual-wall drill pipe seals, sample return hoses, cyclone, splitter, engine, hydraulic system, and high-pressure air pipes; continuously observe whether sample return is continuous during construction; and clean the sampling system promptly when changing holes and sampling sections to avoid residual cuttings contaminating subsequent samples.

Due to differences in actual geological conditions, in-hole tools, drilling angles, and operating methods, the final drilling efficiency, drilling depth, sample recovery, and well completion results should be based on on-site conditions.
